Description:
The 15L ultrasonic cleaning tank is a digital ultrasonic equipment, with digital timer. The 15L ultrasonic cleaner tank is with 360w ultrasonic power and 40Khz for frequency,
it is widely to used for rust removal, degreasing , dust cleaning. The digital ultrasonic tank is with heater power ,degas function and semi wave function. The 15L ultrasonic tank is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts .

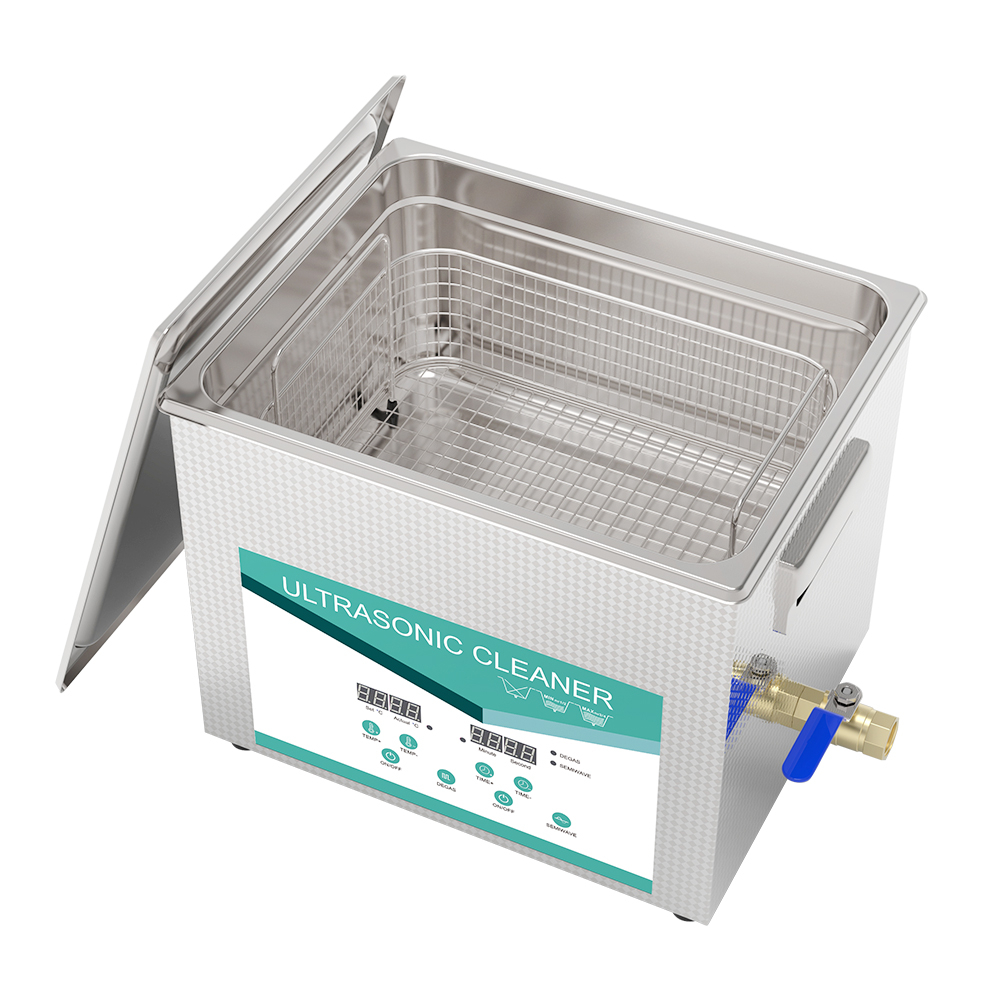

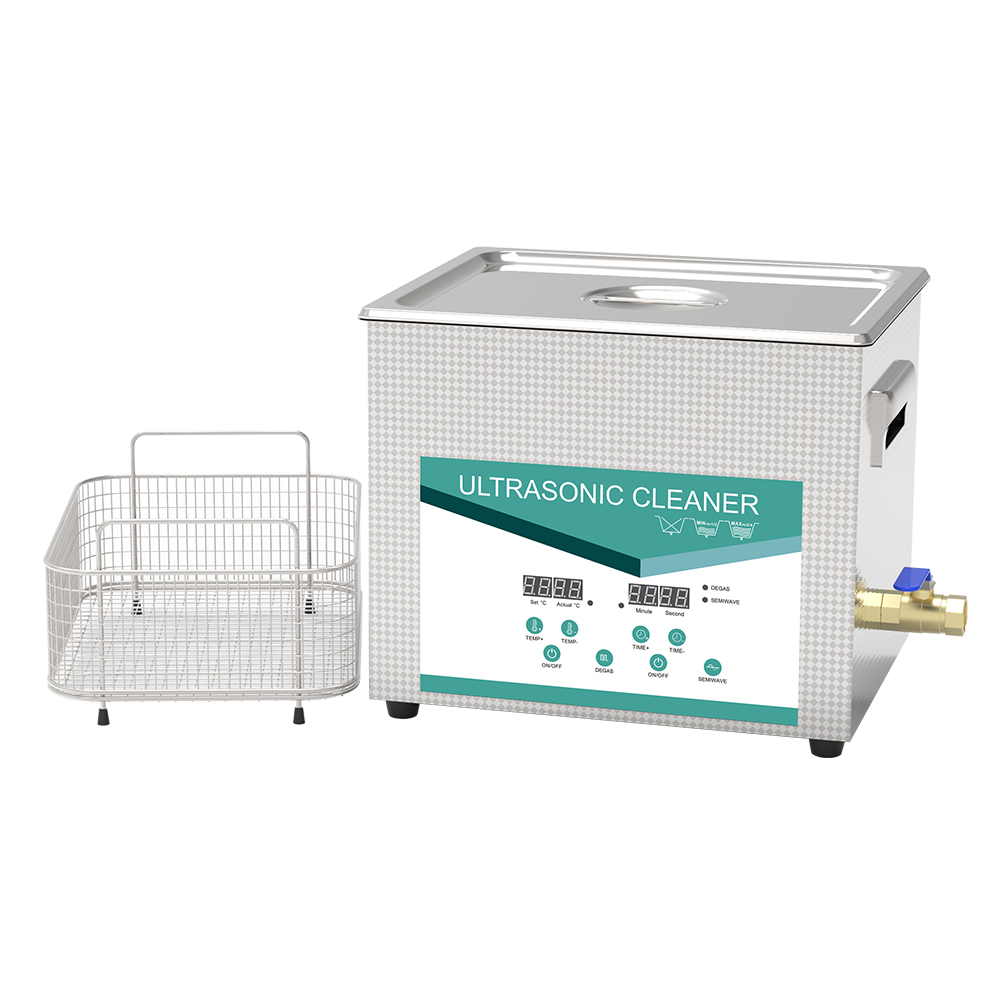

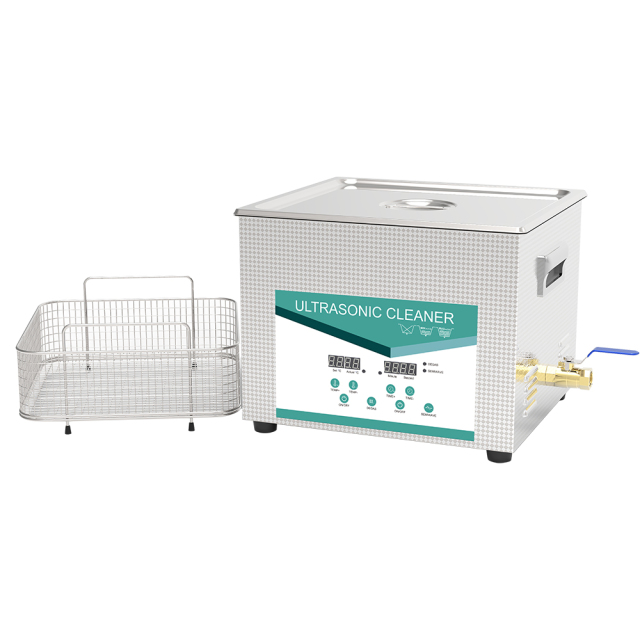

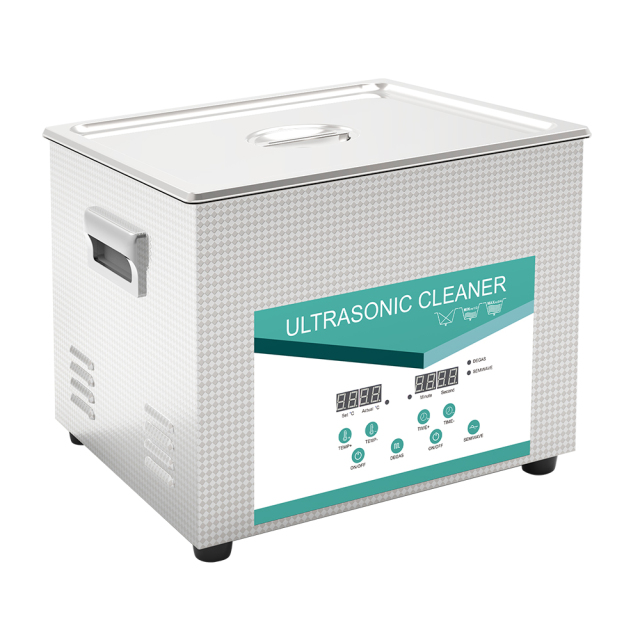

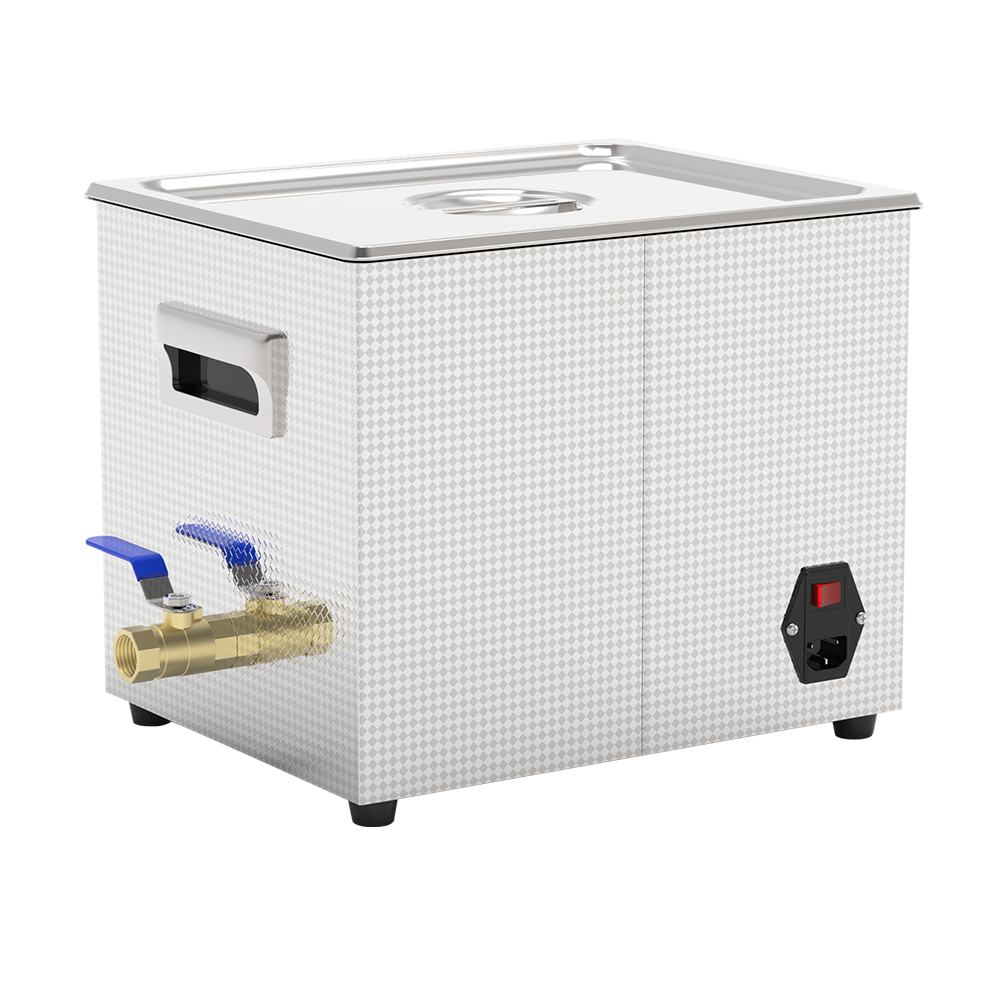

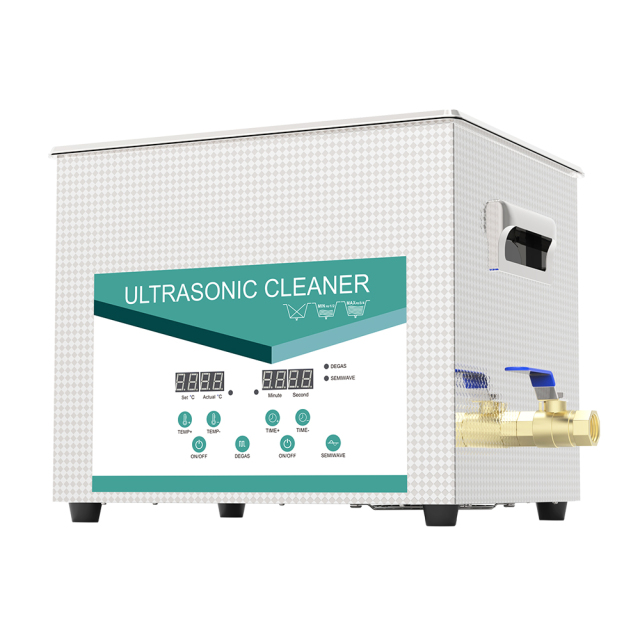

Picture:
Technical data:
| Name |
Digital ultrasonic tank |
Item code |
BSB-DB6A |
| Capacity |
15 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
360w/180w
(Double power) |
Transducer |
60w/pc |
| Heater power |
450w |
Transducer quantity |
6pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes adjustable |
Function |
1. semi wave function, can be use for fragile/ high value items try cleaning(10s-40s.
2.Degas function, better cleaning effect.
3. Heater power, better cleaning in winter |
| Tank size |
300*300*150mm |
| Unit size |
355x325x275 mm |
What parts choose digital ultrasonic tank to clean?
1.Instruments : dental, medical, lab,surgical instruments. lab,dental tools.
2.Jewelry : jewelry tools, gold tools, silver jewelry, golden jewelry, jewellery.
3.Semiconductor : pcb, circuit board,
4.Optic lens : glass, lens, optic lens
5.Machinery : metal, machinery parts,stainless steel parts
6. metal parts: metal, metalic, motorcycle parts, bicycle parts.
7. Home items : razor, shaver, hardware, garage tools
8. Beauty : beauty tools, manuicure tools, beauty instruments.
Key Features:
Ultrasonic power: with 360w ultrasonic power, 6pcs transducers.
Feature: 1. Digital timer 2. With heater power
3. With semi wave and degas function
Tank material: sus304 for tank.
Heater power: with 450 heater power
Basket: with sus304 basket, easy for moving the parts.
What dirty on 3d parts use ultrasonic tank to clean?
1. Resin: SLA/DLP light-curing parts.
2. Engineering plastics: SLS Nylon Gear,FDM-PC/ABS combination parts.
3. Metal print:SLM Stainless Steel Micro Impeller,metal sintered denture framework (titanium).
How to operate ultrasonic cleaning tank?
1. Fill liquid into tank (not over the max line).
2. Power through to the ultrasonic cleaner
3. Put the 3d parts into the basket.
4. Choose time, and Push ultrasonic key to start cleaning.
5. Wait for finished cleaning.
Notes for using ultrasonic tank:
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
What advantages for 3d parts to choose ultrasonic cleaning ?
1. ultrasonic cleaning takes 8-12 minutes, conventional cleaning takes 25-40 minutes, ultrasonic cleaning save 1/2- 3/4 cleaning time.
2. Ultrasonic cleaning cut down material damaged ratio : ultrasonic cleaner ratio ＜0.1%, while connventional cleaning ratio up to 5% -18%.
3. Cleaning solvent consumption: Ultrasonic cleaning use 0.3L/ cleaning, while connventional cleaning needs 1.5L- 2.2L on solvent.
4. Ultrasonic cleaning with better cleaning effect, and clean mini size particle dirty.
