Description:

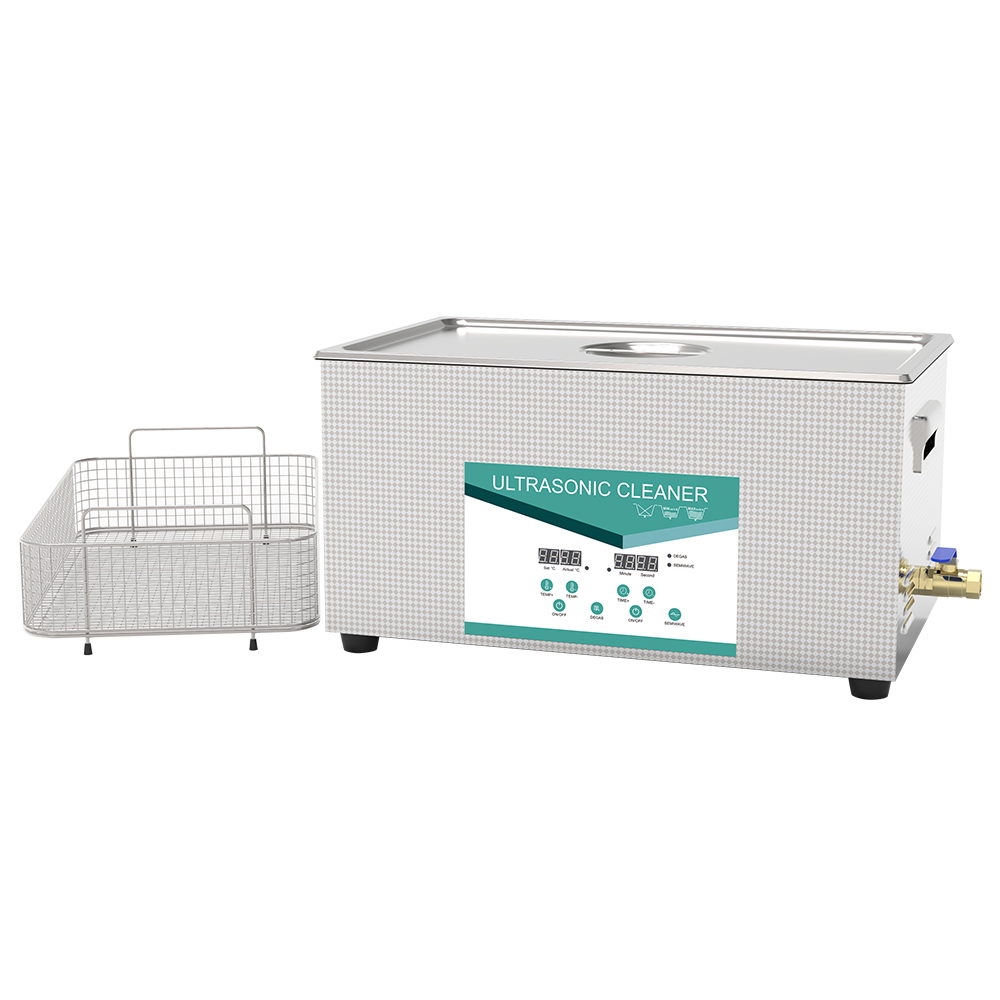

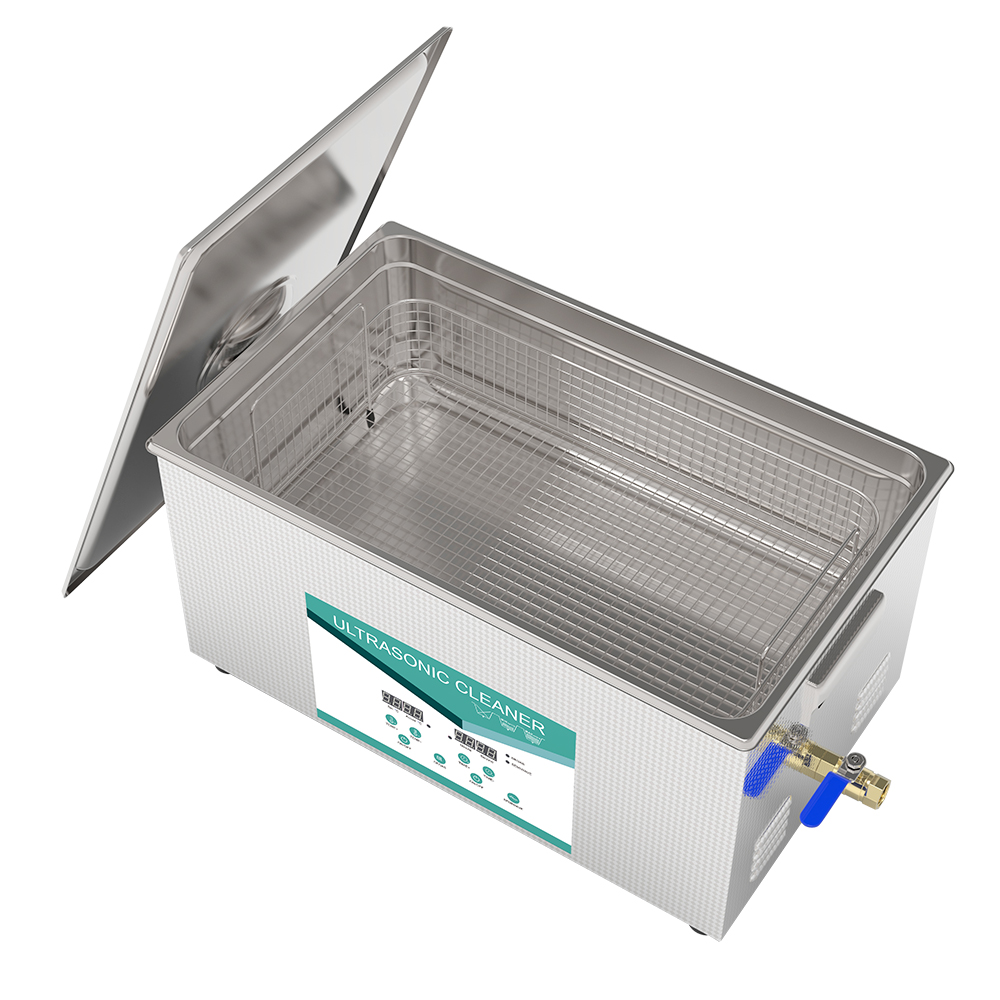

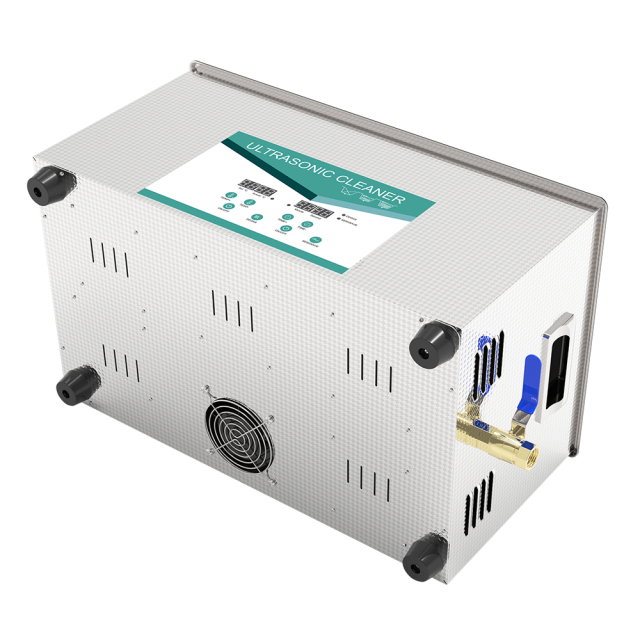

The 22L ultrasonic washer is a digital ultrasonic cleaning equipment, with digital timer. It is with 480w ultrasonic power and 40Khz for frequency.
The powered ultrasonic washer is widely to used for rust removal, degreasing , dust cleaning. The digital ultrasonic washer is with heater power ,degas function and semi wave function.
The ultrasonic washer equipment is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts,3d parts, medical, surgical, lab instruments .
Picture:
Technical data:
| Name |
Ultrasonic washer equipment 22L |
Item code |
BSB-DB8A |
| Capacity |
22 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
480W/240W
(Double power) |
Transducer |
60w/pc |
| Heater power |
500w |
Transducer quantity |
8pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes adjustable |
Function |
1. semi wave function, can be use for fragile/ high value items try cleaning(10s-40s.
2.Degas function, better cleaning effect.
3. Heater power, better cleaning in winter |
| Tank size |
500*300*150mm |
| Unit size |
530x330x280 mm |
Dirty can use ultrasonic washer to clean:
1. Mineral oil: Motor oil, guide rail oil.
2. Synthetic ester oils: Gear oil, hydraulic oil.
3. Solid Grease: Lithium grease, molybdenum disulfide grease.
4. Anti-corrosion oil film: Thin Layer Vapor Phase Rust Preventive Agent.
5. Non-metallic particles:Ceramic Grit, Carbon fiber dust, Polishing paste residue.
6. Biological contaminant:Cutting fluid mold,Finger Grease Mask,Insect secretions.
Which Machinery parts choose ultrasonic washer to clean?
1. Metal parts: Bolts, spacers, springs.2.Cast iron housing: Transmission housing, pump body.3. Copper alloy parts: Valve, Bearing Cage.
4. Tools: Drills, milling cutters, chuck jaws.
What other parts use ultrasonic washer to clean?
1.instruments : dental, medical, lab instruments. lab and dental tools 2.automobile : car parts, engine parts, vehicel parts, car maintenance tools
3.Semiconductor : pcb, circuit board, computer pcb,computer parts
4.Optic lens : glass, lens, optic lens
5.Machinery : metal, machinery parts,stainless steel parts
6. metal parts: metal, metalic, motorcycle parts, bicycle parts.
7. Home items : razor, shaver, hardware, garage tools
8.vehicle Parts: motorcycle parts, bycicle parts
9.printing parts: 3d parts, 3d mold.
Key Features:
Power: with 480w ultrasonic power.
Feature: 1. Digital timer, 2.With heater power,3. With semi wave and degas function.
Tank material: sus304 for tank.
Heater power: with 500w heater power
Basket: with sus304 basket, easy for moving the parts.
How to use ultrasonic washer?
1. Fill liquid into tank (not over the max line).
2. Power through to the ultrasonic cleaner
3. Put the 3d parts into the basket.
4. Choose time, and Push ultrasonic key to start cleaning.
5. Wait for finished cleaning.
Caution for using ultrasonic washer:
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
