Description:

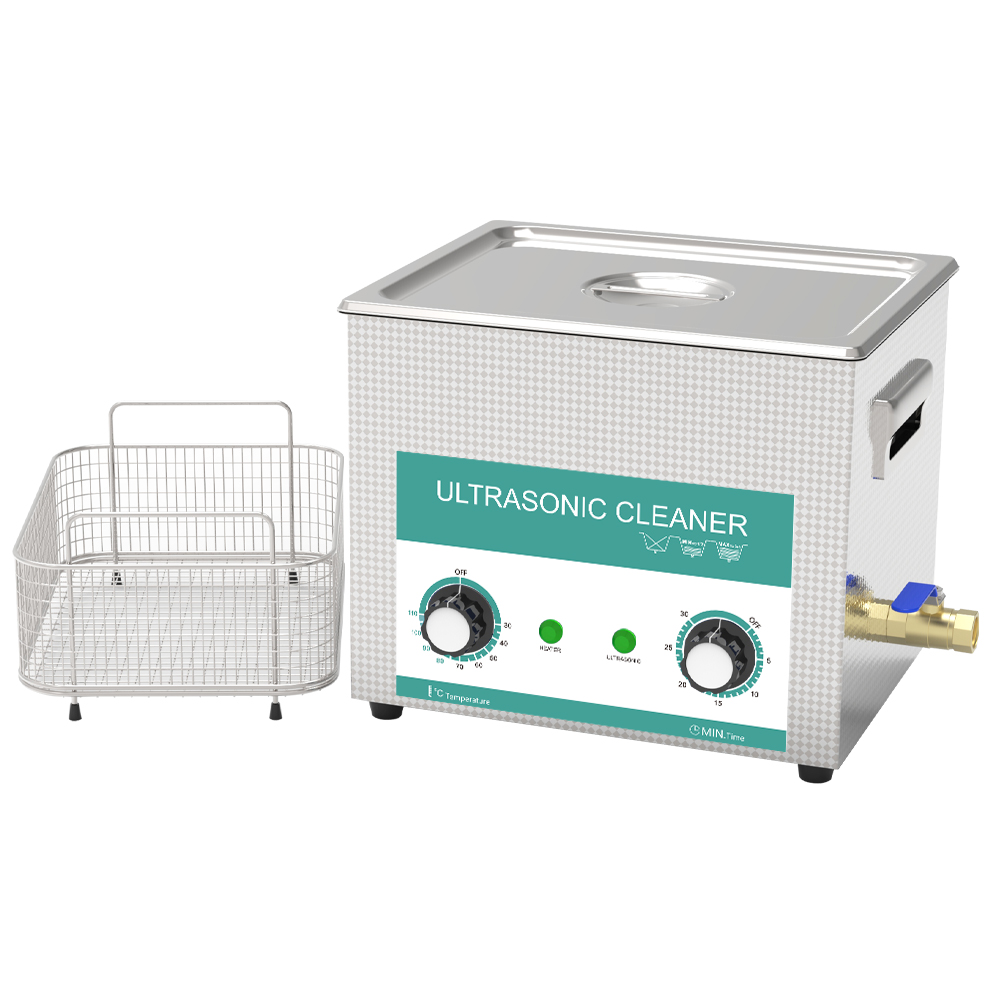

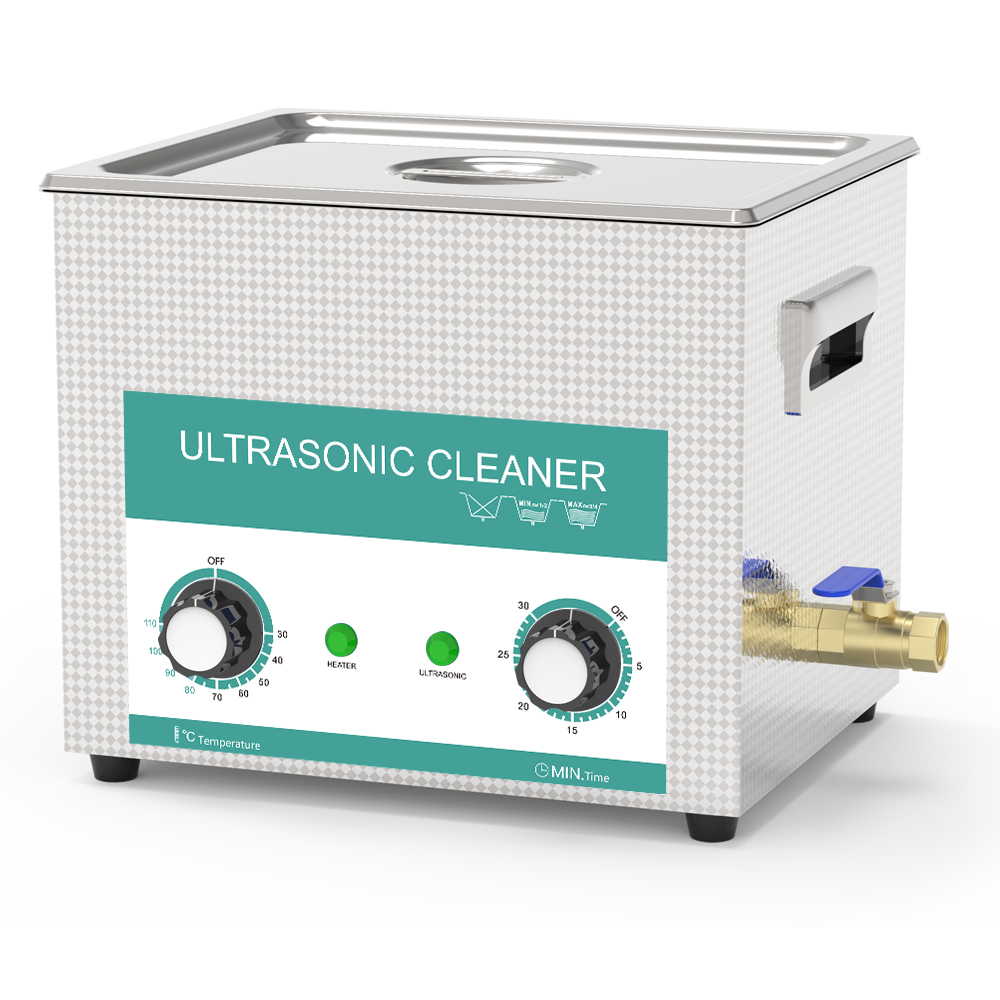

The 10 liters ultrasonic washer is a ultrasonic equipment, with mechanical timer. The 10L ultrasonic washer is with 240w ultrasonic power and 40Khz for frequency,
it is widely to used for rust removal, degreasing , dust cleaning. The mechanical ultrasonic washer is with heater power,and heating temperature is from 1℃ to 80℃ . The 10L ultrasonic washer is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts .
Picture:
Technical data:
| Name |
ultrasonic washer 10L |
Item code |
BSB-DB4A |
| Capacity |
10 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
240w
|
Transducer |
60w/pc |
| Heater power |
300w |
Transducer quantity |
4pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes adjustable |
Function |
1. Mechanic timer, simple and easy to operate the washer.
2. Heater power, better cleaning in winter |
| Tank size |
300*240*150mm |
| Unit size |
325x265x275 mm |
10Liters ultrasonic washer applications:
1.Instruments : dental, medical, lab,surgical instruments. lab,dental tools.
2.Machinery : metal, machinery parts,stainless steel parts
3 Metal parts: metal, metalic, motorcycle parts, bicycle parts.
4. Home items : razor, shaver, garage tools
5. Beauty : beauty tools, manuicure tools, beauty instruments.
6. Others: hardware, cnc parts,
Key Features:
Power: with 240w ultrasonic power, 4pcs (60w/pc) transducer.
Tank material: sus304 for tank.
Heater power: with 300 heater power
Basket: with sus304 basket, easy for moving the parts.
3d parts suitable for digital ultrasonic cleaner 10L to clean:
1. Resin: SLA/DLP light-curing parts.
2. Engineering plastics: SLS Nylon Gear,FDM-PC/ABS combination parts.
3. Metal print:SLM Stainless Steel Micro Impeller,metal sintered denture framework (titanium).
How to use ultrasonic cleaner to clean 3D parts?
1. Fill liquid into tank (not over the max line).
2. Power through to the ultrasonic cleaner
3. Put the 3d parts into the basket.
4. Choose time, and Push ultrasonic key to start cleaning.
5. Wait for finished cleaning.
Notes to use digital ultrasonic cleaner:
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
Advantages for ultrasonic cleaning 3D parts:
1. ultrasonic cleaning takes 8-12 minutes, conventional cleaning takes 25-40 minutes, ultrasonic cleaning save 1/2- 3/4 cleaning time.
2. Ultrasonic cleaning cut down material damaged ratio : ultrasonic cleaner ratio ＜0.1%, while connventional cleaning ratio up to 5% -18%.
3. Cleaning solvent consumption: Ultrasonic cleaning use 0.3L/ cleaning, while connventional cleaning needs 1.5L- 2.2L on solvent.
4. Ultrasonic cleaning with better cleaning effect, and clean mini size particle dirty.
