Description:
The 30L ultrasonic cleaning equipment is a mechanic ultrasonic cleaning tank, with mechanical timer. The 30L ultrasonic cleaner equipment is with 600w ultrasonic power. The ultrasonic cleaning tank 30L is at 40Khz,it is widely to used for rust removal, degreasing , dust cleaning. The 30L ultrasonic cleaning equipment is with heater power. The 30L ultrasonic cleaning equipment is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts,3d parts, medical, surgical, lab instruments .

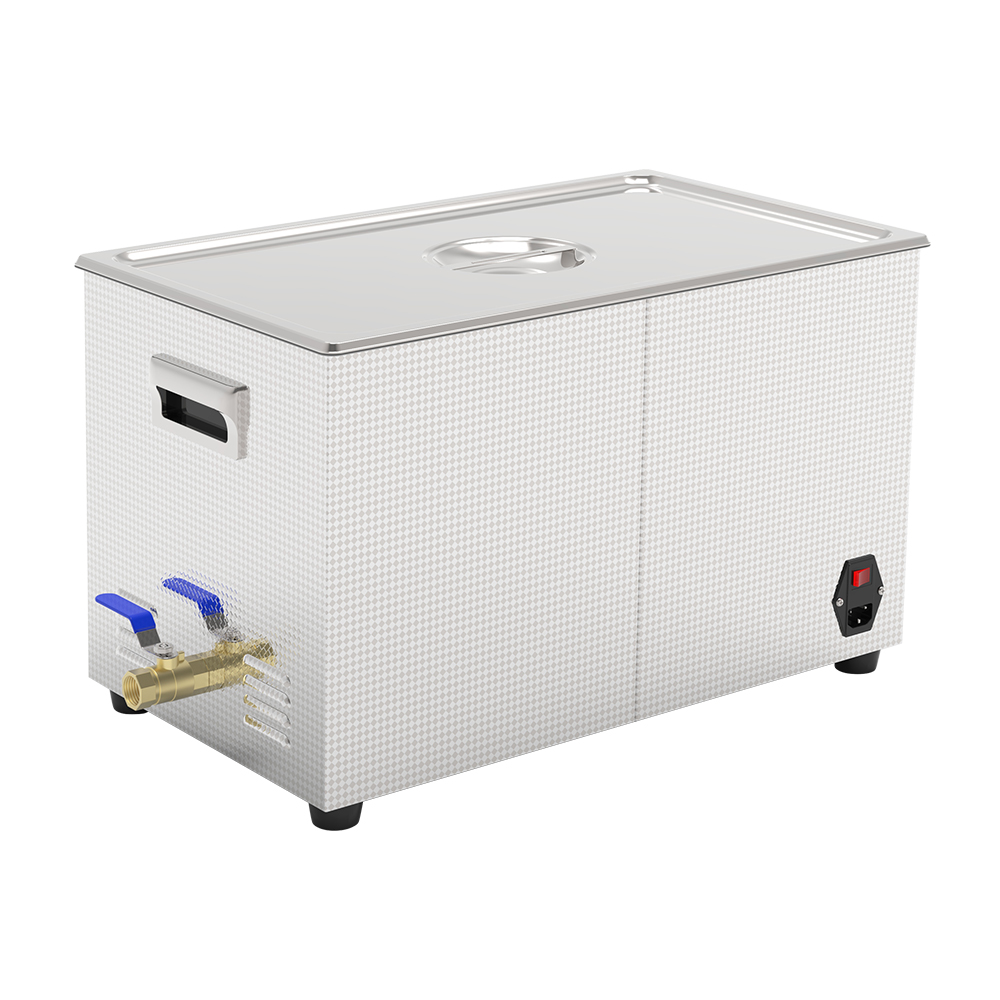

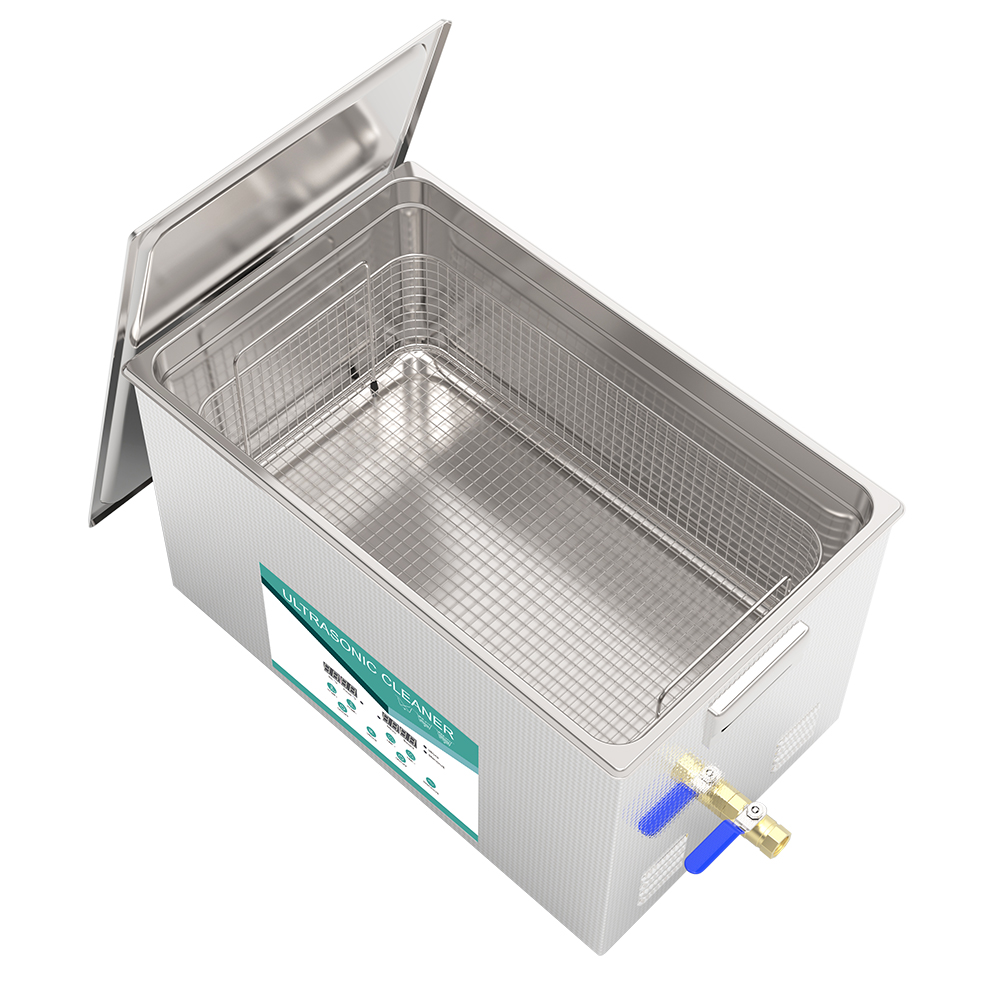

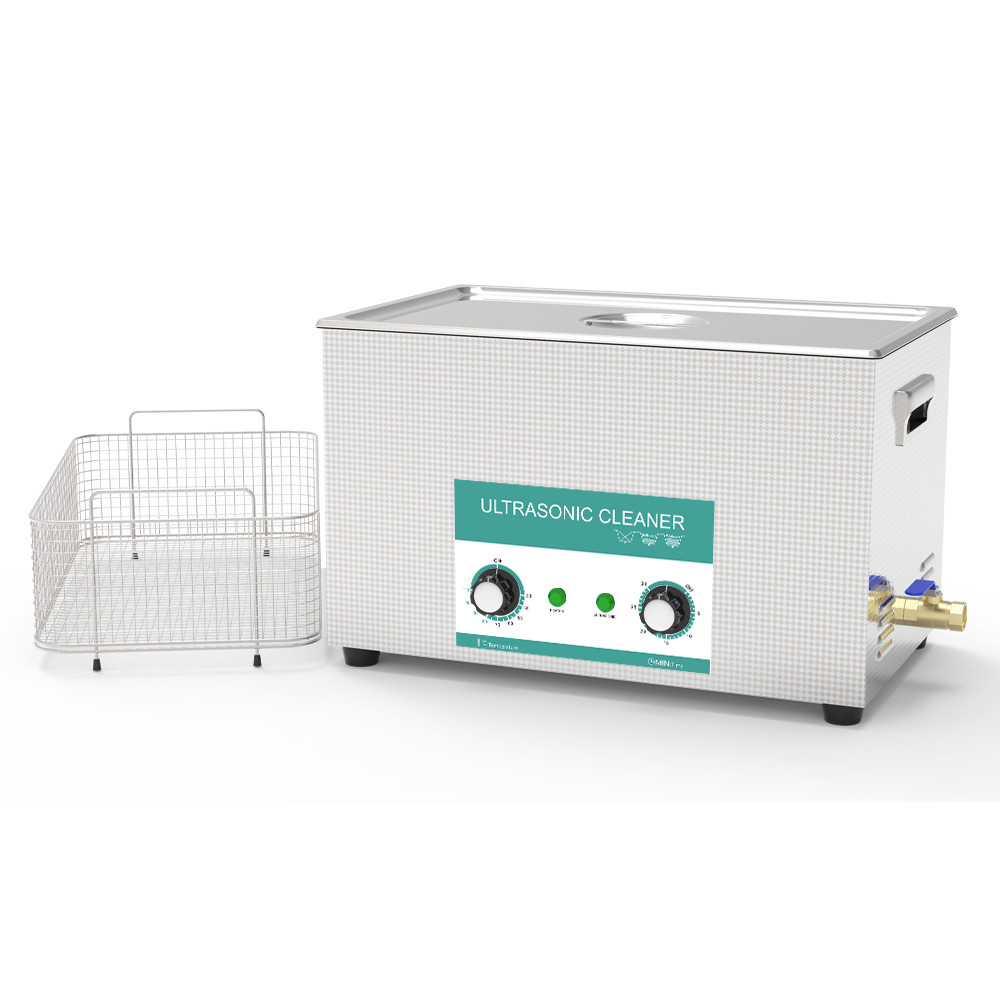

Picture:
Technical data:
| Name |
Ultrasonic cleaning equipment 30L |
Item code |
BSB-MB10A |
| Capacity |
30 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
600w
|
Transducer |
60w/pc |
| Heater power |
500w |
Transducer quantity |
10pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes mechanic |
Function |
1. with mechanic timer, simple and easy for operation.
3. Heater power, better cleaning in winter |
| Tank size |
500*300*240mm |
| Unit size |
530x330x280 mm |
1. Metal parts: Bolts, spacers, springs.2. Cast iron housing: Transmission housing, pump body.3. Copper alloy parts: Valve, Bearing Cage.
4. Tools: Drills, milling cutters, chuck jaws.
5. Machinery : metal, machinery parts,stainless steel parts
6. Metal parts: metal, metalic, motorcycle parts, bicycle parts.
7. Home items : razor, shaver, hardware, garage tools
8. Vehicle Parts: motorcycle parts, bycicle parts
9. Printing parts: 3d parts, 3d mold.
What dirty on machinery parts use 30L ultrasonic equipment to clean?
1. Mineral oil: Motor oil, guide rail oil.
2. Synthetic ester oils: Gear oil, hydraulic oil.
3. Solid Grease: Lithium grease, molybdenum disulfide grease.
4. Anti-corrosion oil film: Thin Layer Vapor Phase Rust Preventive Agent.
5. Non-metallic particles:Ceramic Grit, Carbon fiber dust, Polishing paste residue.
6. Biological contaminant:Cutting fluid mold,Finger Grease Mask,Insect secretions.
Key Features:
Ultrasonic power: 600w (10pcs at 60w/pc transducer).
Tank material: sus304 for tank.
Heater power: with 500 heater power
Basket: with sus304 basket, easy for moving the parts.
How to use ultrasonic cleaning equipment to clean 3D parts?
1. Fill liquid into tank (not over the max line).
2. Power through to the ultrasonic cleaner
3. Put the 3d parts into the basket.
4. Switch the timer, and switch the ultrasonic to work,
5. Wait for finished cleaning.
Notes to use ultrasonic cleaning equipment :
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
What advantages for 3d parts to use ultrasonic cleaning equipment to wash?
1. ultrasonic cleaning takes 8-12 minutes, conventional cleaning takes 25-40 minutes, ultrasonic cleaning save 1/2- 3/4 cleaning time.
2. Ultrasonic cleaning cut down material damaged ratio : ultrasonic cleaner ratio ＜0.1%, while connventional cleaning ratio up to 5% -18%.
3. Cleaning solvent consumption: Ultrasonic cleaning use 0.3L/ cleaning, while connventional cleaning needs 1.5L- 2.2L on solvent.
4. Ultrasonic cleaning with better cleaning effect, and clean mini size particle dirty.
