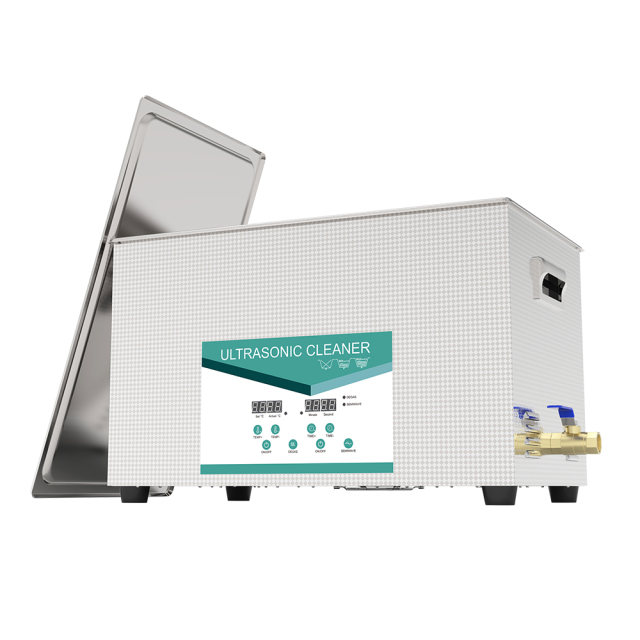

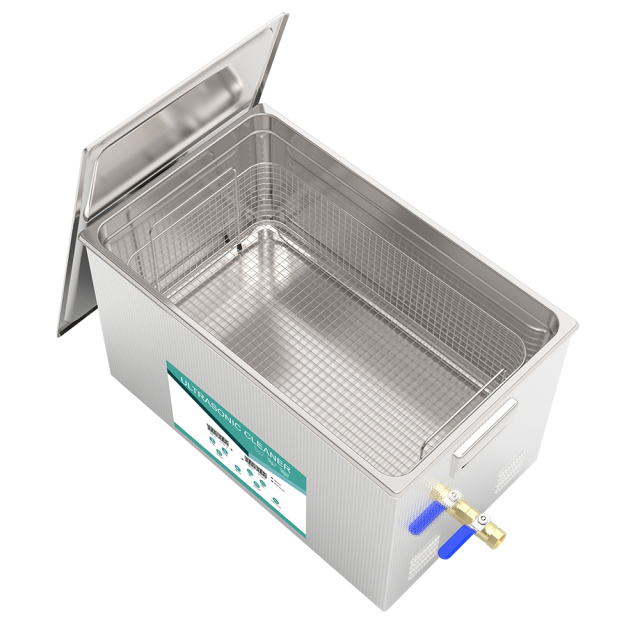

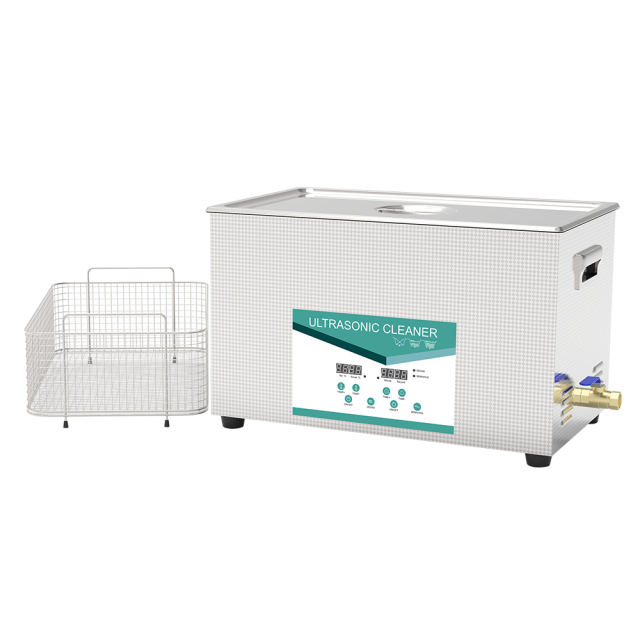

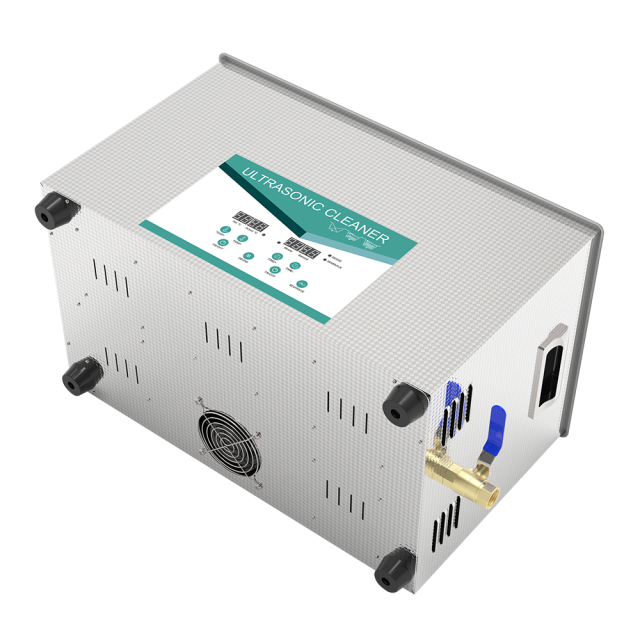

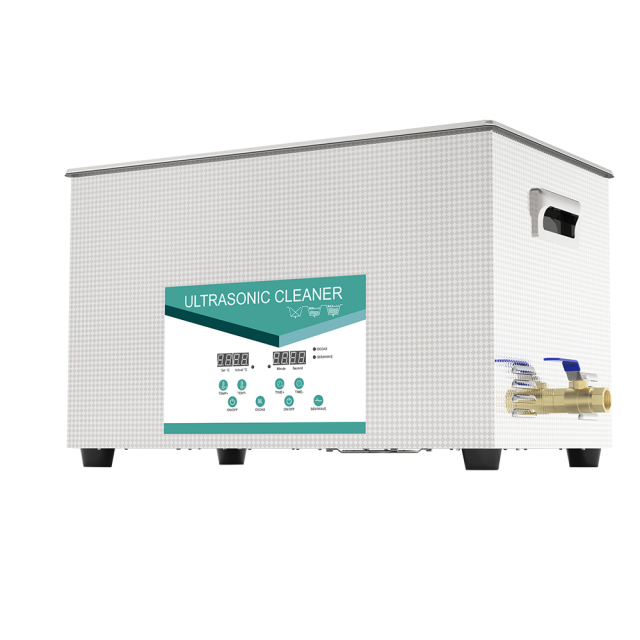

Description:
The 30L ultrasonic cleaner is a digital ultrasonic cleaning tank, with digital timer. The 30L ultrasonic cleaner is with 600w ultrasonic power and degas function. The ultrasonic cleaning tank 30L is at 40Khz,it is widely to used for rust removal, degreasing , dust cleaning. The digital ultrasonic cleaner is with heater power ,degas function and semi wave function. The 30L ultrasonic cleaner equipment is widely to clean: metal, bicycle parts, machinery parts, car parts,motorcycle parts, screws, metalic material parts,3d parts, medical, surgical, lab instruments .
Picture:
Technical data:
| Name |
Ultrasonic cleaning equipment 30L |
Item code |
BSB-DB10A |
| Capacity |
30 liters |
Tank material |
stainless steel304 |
| Ultrasonic power |
600W/300W
(Double power) |
Transducer |
60w/pc |
| Heater power |
500w |
Transducer quantity |
10pcs |
| Frequency |
40kHz |
Basket |
sus304 basket |
| Heater temperature |
Room temperature - 80℃ adjustable |
Lid |
with lid |
| Timer |
0-30 minutes adjustable |
Function |
1. semi wave function, can be use for fragile/ high value items try cleaning(10s-40s.
2.Degas function, better cleaning effect.
3. Heater power, better cleaning in winter |
| Tank size |
500*300*240mm |
| Unit size |
530x330x280 mm |
1. Metal parts: Bolts, spacers, springs.2.Cast iron housing: Transmission housing, pump body.3. Copper alloy parts: Valve, Bearing Cage.
4. Tools: Drills, milling cutters, chuck jaws.
What other parts use 30L ultrasonic cleaner to clean?
1.instruments : dental, medical, lab instruments. lab and dental tools 2.automobile : car parts, engine parts, vehicel parts, car maintenance tools
3.Semiconductor : pcb, circuit board, computer pcb,computer parts
4.Optic lens : glass, lens, optic lens
5.Machinery : metal, machinery parts,stainless steel parts
6. metal parts: metal, metalic, motorcycle parts, bicycle parts.
7. Home items : razor, shaver, hardware, garage tools
8.vehicle Parts: motorcycle parts, bycicle parts
9.printing parts: 3d parts, 3d mold.
What dirty on machinery parts 30L ultrasonic cleaner can wash?
1. Mineral oil: Motor oil, guide rail oil.
2. Synthetic ester oils: Gear oil, hydraulic oil.
3. Solid Grease: Lithium grease, molybdenum disulfide grease.
4. Anti-corrosion oil film: Thin Layer Vapor Phase Rust Preventive Agent.
5. Non-metallic particles:Ceramic Grit, Carbon fiber dust, Polishing paste residue.
6. Biological contaminant:Cutting fluid mold,Finger Grease Mask,Insect secretions.
Key Features:
Transducer: with 600w ultrasonic power.
Feature: 1. Digital timer, 2.With heater power,3. With semi wave and degas function.
Tank material: sus304 for tank.
Heater power: with 500 heater power
Basket: with sus304 basket, easy for moving the parts.
How to use ultrasonic cleaner to clean 3D parts?
1. Fill liquid into tank (not over the max line).
2. Power through to the ultrasonic cleaner
3. Put the 3d parts into the basket.
4. Choose time, and Push ultrasonic key to start cleaning.
5. Wait for finished cleaning.
Notes to use digital ultrasonic cleaner:
1. Do not use alcohol , if use alcohol, do not use heater power
2. When use heater power, must ensure water up to max line.
3.Do not use inflammable liquid to clean.
Advantages for ultrasonic cleaner to clean 3D parts:
1. ultrasonic cleaning takes 8-12 minutes, conventional cleaning takes 25-40 minutes, ultrasonic cleaning save 1/2- 3/4 cleaning time.
2. Ultrasonic cleaning cut down material damaged ratio : ultrasonic cleaner ratio ＜0.1%, while connventional cleaning ratio up to 5% -18%.
3. Cleaning solvent consumption: Ultrasonic cleaning use 0.3L/ cleaning, while connventional cleaning needs 1.5L- 2.2L on solvent.
4. Ultrasonic cleaning with better cleaning effect, and clean mini size particle dirty.
