Bestsonicbath/Large Ultrasonic Cleaner Machine 360L High Power with Heater

No.BSB-IS72A
Features:
  • 360L ultrasonic cleaner tank.
  • 3600w ultrasonic power, strong cleaning for oil,dust, and rust.
  • Tank size: 1000*600*600mm ( available for customization).
  • High heater power 6000w, better cleaning in winter.
  • Hand welding tank,double sides welding at four corners of the tank, ensure longer life span for tank.
  • Many quantity ultrasonic transducers: total 72pcs ultrasonic vibrators(60w/pc).
  •  1-99 hours working timer adjustable , meet engine blocks, dpf,carburetor,car parts ect cleaning.
  • Stainless steel 304 at 2.0mm for thickness, double ensure durable life for tank.
  • With stainless steel lid and castor, can move the ultrasonic cleaner machine.
  • With sus304 basket, ensure better loading and move the parts.
  • Heater temperature is from room temperature to 99℃, suitable cleaning solvent requirement.
  • Use high efficiency generator, ensure higher ultrasonic power output with better cleaning.

Our industrial ultrasonic cleaner machine, we not only use expansion screws for ultrasonic transducer installing, but also use glue and oven to bake, double ensuring the  installing of the transducers. Our transducers are more stable and better touch to the tank, making better cleaning even long time.
Our industrial ultrasonic cleaner machine use high efficiency generator, making high output ultrasonic power, bringing strong cleaning effect .
  • 360w ultrasonic cleaner machine
  • 3600w ultrasonic power
  • large ultrasonic cleaner machine
  • engine cleaner machine
  • Bestsonicbath/Large Ultrasonic Cleaner Machine 360L High Power with Heater

Description

Description:

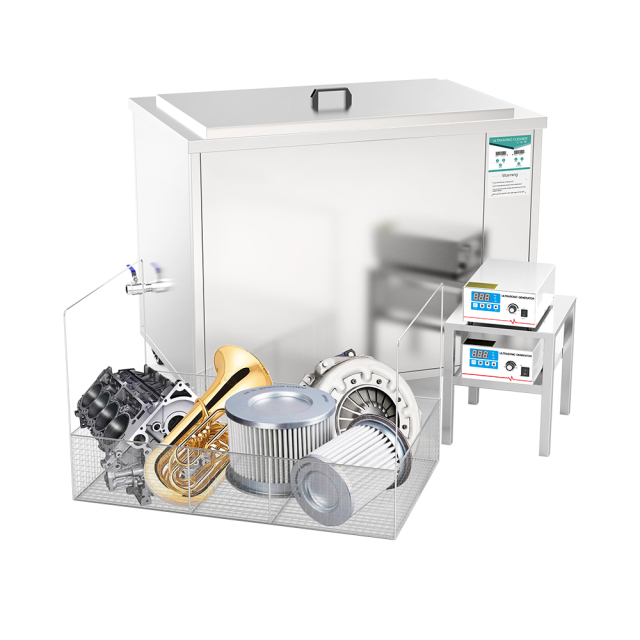

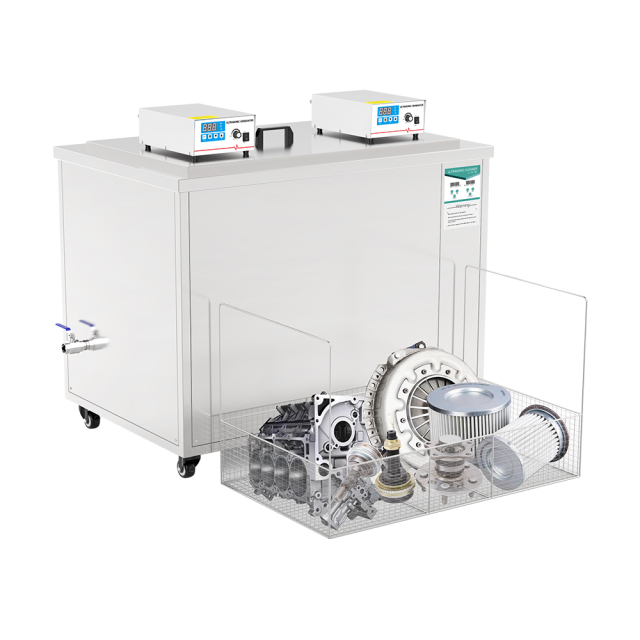

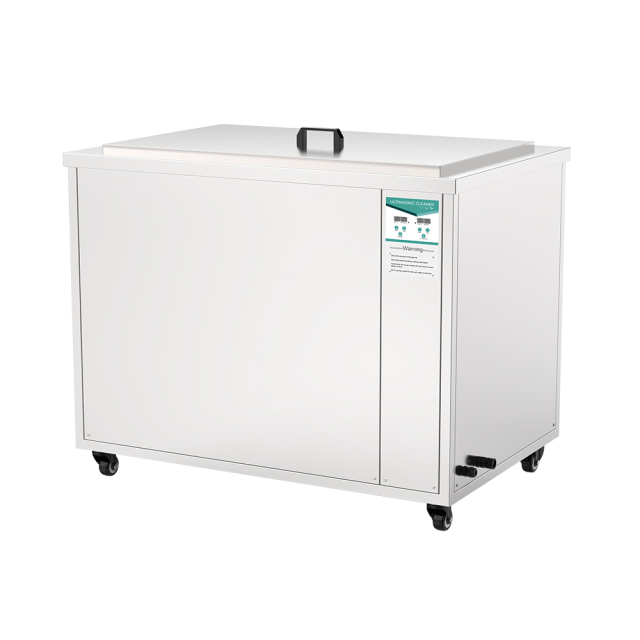

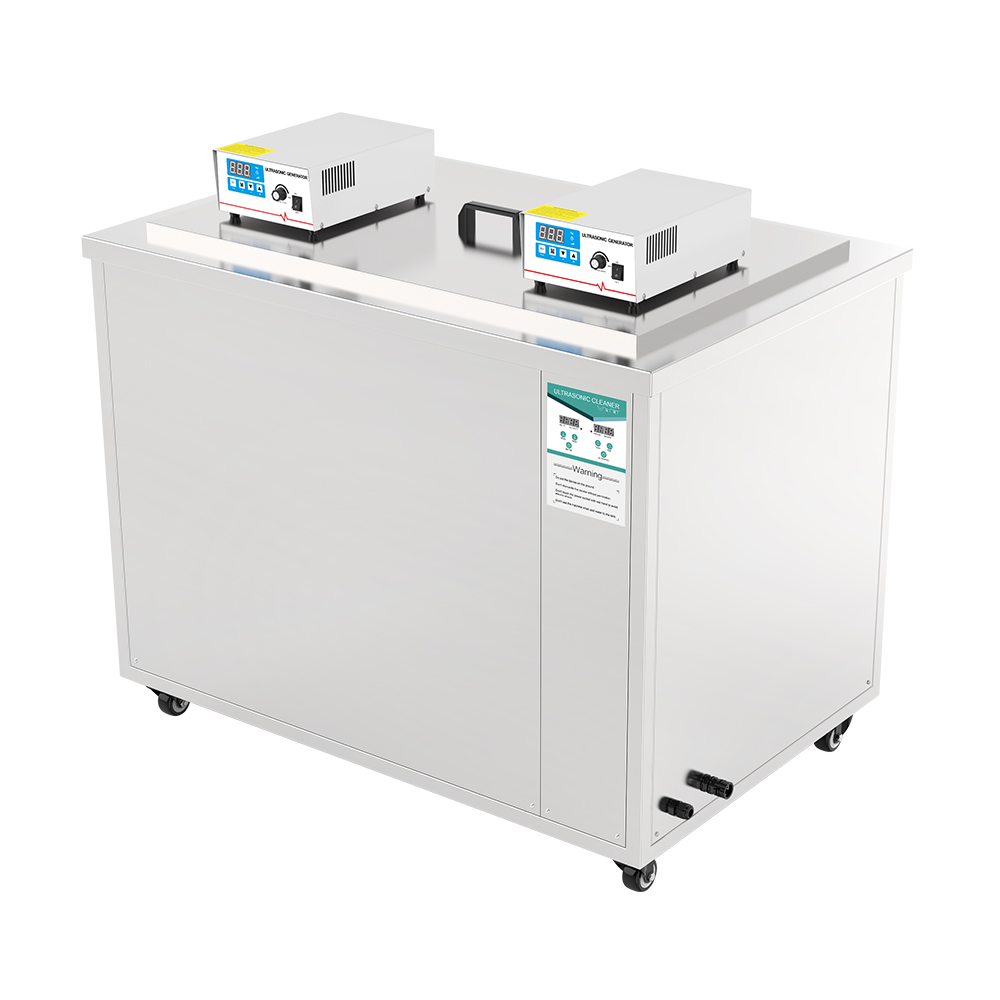

The large ultrasonic cleaner machine is a single tankultrasonic cleaning equipment. It has 3600w ultrasonic power with 6000w heater power, to ensure good cleaning and removing oil, dust and rust from the engine blocks,dpf,carburetor, turbine blade, cnc part, car parts, machinery parts metal parts. The ultrasonic cleaner machine is by hand welding tank, so the tank size can be made as per customer's project.

Picture:


Technical data:
Name ultrasonic cleaner machine   Item code BSB-IS72A
Capacity 360 liters Tank material stainless steel304
Ultrasonic power 3600w Tank thickness sus304 at 2.0mm
Heater power 6000w (9000w available) Transducer quantity 72pcs
Frequency 25kHz/28kHz/40kHz Transducer type 60w/pc
Heater temperature Room temperature - 99℃ adjustable Basket sus304 basket
Timer 1-99 hours adjustable Lid  with lid
Frequency  25kHz/28kHz/40kHz Function to clean and remove oil,dust,and rust
Tank size 1000*600*600mm (different size available) Drainage Two drainages

Parts choose large ultrasonic cleaner machine to clean?
  • Vehicle Industry: Engine blocks, fuel injector,tire, car parts, dpf,
  • Aerospace Industry: turbine blade, machinery parts
  • Electronics manufacturing: electronics parts, pcb.
  • Machinery industry: machinery parts,metal parts,diesel injector
  • CNC industry : cnc parts
  • Motorcycle industry: motorcycle parts,motorcycle engine
  •  Othe industry: metal parts.marine parts.



Advantage for engine cleaning by ultrasonic machine:
  • Cleaning situatuon : ultrasonic cleaning with deep cleaning, remove carbon deposits in gap ≤0.05mm,while contional only clean surface dirty .
  •  Dirty residue cleaning ration comparison: ultrasonic cleaning remove residue is ≥ 99.5% and oil cleaning up 98%,while high pressure washing only clean 60-75%;and chemical  cleaning only 85-90%.
  • Cleaning effect comparison: ultrasonic cleaning with completely cleaning, while high pressure cleaning has blind spot, can't ensure completetly cleaning.
  • Cleaning time conparison: ultrasonic cleaning engine takes 30 minutes, while conventional takes 6.5 hours (need to disassemble engine 2hours ); So ultrasonic cleaning time.
  • Cleaning cost comparison: each engine ,by ultrasonic cleaning cost about USD15 ; while by high pressure cost USD80 , ultrasonic cleaning cut down 80% of engine cleaning cost.
  • Future maintenance comparison: by ultrasonic cleaning, part maintenace is only 0.9%, while by high pressure cleaning is 6.7%. Ultrasonic cleaning save repair cost and time for future.
  • Waste water comparison: ultrasonic cleaning with watse is about 1.8 tons, while conventional cleaing, waste water is 18 tons per months,  waste ratio decrease 75%.

How to clean car engine by ultrasonic machine ?
1.Dismantling and Sorting
1.1.Dismantling the ECU/sensors and other electronic control components.

1.2. Separate rubber/plastic seals.
1.3.Disassembled cylinder head/oil pan/piston ring.

2. Ultrasonic cleaning :
2.1.Neutral cleaning water (PH 7.2) + 40kHz.
2.2. Ultrasonic power density ≥15W/L.

3. Rinsing washing :
3.1 .swirl rinsing, Bi-directional rotating water flow (30rpm).
3.2. .Automatic spraying of deep holes in oil passages.
4. Vacuum drying: 70°C hot air + -0.08MPa negative pressure.
5. Engine film protection:With fully synthetic rust inhibitor solution for ultrasonic cleaning.

Notes to use ultrasonic cleaner machine clean engine:
  • Different material engine blocks, use different cleaning solution
  • Different dirty on engine blocks require different cleaning time and different temperature
  • Different dirty ,the waste water is different .
  • Use Ultrasonic cleaner machine for castings oil cleaning, do not use steam pre-cleaning  (microcrack expansion due to thermal shock).
  • Use ultrasonic cleaner machine for crankshafts cleaning, need to isolate the bearing position during ultrasonic cleaning.
  • Use ultrasonic cleaner machine to clean complex parts such as turbocharger housings , should use a gas phase ultrasound process (ultrasound + trichloroethylene vapour degreasing).
